Textured High Cellular Confinement System Honeycomb HDPE Geocell For Road Foundation Slope Protection Parking Lot Driveway Retaining Wall

China Textured High Cellular Confinement System Honeycomb HDPE Geocell For Road Foundation Slope Protection Parking Lot Driveway Retaining Wall wholesale

Brand Name : OEM

Certification : ISO9001

Place of Origin : China

MOQ : 3000sqm

Price : US $0.80-3.6 / Square Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 Square Maters/ Day

Delivery Time : 7-12 working days

Packaging Details : according to customers requirements

Package : packed in belts, wood pallet

Uv Resistance : Excellent

Keyword : hdpe geocell

Model No : 330~1000mm

Seam Peel Strength : ≥ 1000N/10cm

Product Peel Strength : 140n/10cm

Function : Protect, Strengthen, Reinforcing

Color : Black, Green, or Customized

Tensile Yield Strength : 3.75N/mm-29N/mm

Product Height : 50MM-250MM

Filler : Concrete Materials, Soil & Rock

Material : High Density Polyethylene (HDPE)

Contact Now

HDPE Geocell Cellular Confinement System

HDPE Geocell is a high performance three dimensional cellular confinement system. Filled with granular material, such as soil,rock.We can provides superior confinement and reinforcement for load support, erosion control, and slope renforcement applications. Our Geocell is manufactured from extruded strips of HDPE that are precision welded to form multiple cell heights and sizes.
HDPE Geocell have a special surface texture which ensures optimum contact between the geocells and the filling material. The cell walls are perforated to provide a hydraulic connection between the individual pockets and to allow excess water to drain away. The perforation provides a path for roots to grow between cells.

Textured High Cellular Confinement System Honeycomb HDPE Geocell For Road Foundation Slope Protection Parking Lot Driveway Retaining Wall

hdpe geocell Product Technical Parameters ASTM Standard:

Material Properties	Unit						Test Method
Cell Depth	mm	75	100	150		200
Polymer Density	g/cm3	0.935-0.965					ASTM D 1505
Environmental Stress Crack Resistance	Hours	>400					ASTM D 5397
Environmental Stress Crack Resistance	Hours	6000					ASTM D 1693
Carbon Black Content	%	1.5% - 2.0%					ASTM D 1603
Nominal Sheet Thickness Before Texturing	mm	1.27 -5%,+10%					ASTM D 5199
Nominal Sheet Thickness After Texturing	mm	1.52-5%,+10%					ASTM D 5199
Strip Puncture Resistance	N	450					ASTM D 4833
Seam Peel Strength	N	1065	1420	2130	2840		EN ISO13426-1B
Seam Efficiency	%	100					GRI-GS13
Nominal Expanded Cell Size (width x length)	mm	320x287,475x508 etc
Nominal Expanded Panel Size (width x length)	m	2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

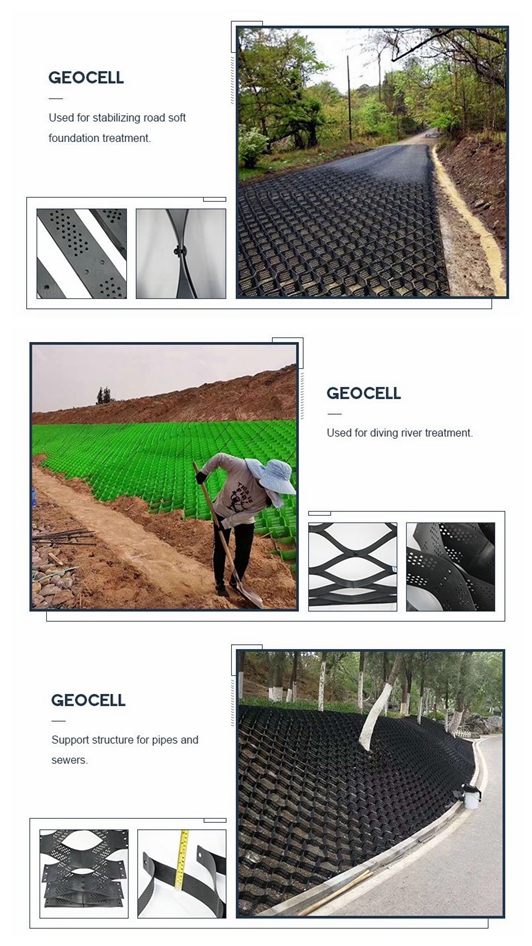

HDPE Geocell Typical solutions

HDPE geocell: Protecting slopes in infrastructure projects
Vegetating, protecting, and securing seals such as geomembrane or clay liners, e.g., slopes on landfill sites
Vegetating for rapid, long-term integration into the landscape

hdpe geocell Benefits

HDPE Geocell,A wide variety of filling materials can be used with hdpe plastic Geocell. They are held in place by the pocket-like structure and thus provide erosion control.

Geocell:Reliable and effective even under demanding conditions
HDPE geocell Can be used on slope inclinations up to 50°
Plastic HDPE geocell:Temperature resistant, high UV stability, chemically and biologically resistant
Plastic geocell: Extremely stable yet flexible

FAQ
Q:Can you send samples?
A:Yes, we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 milion yuan. It is a professional manufacturer of geomembrane, geotextile,hdpe geocell and other products. So we have the competitive price with best quality.

Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A: General within 3-7days after received the deposit.

Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
